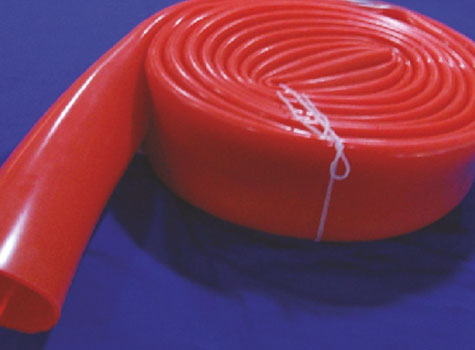

Silicone Sleeves For Corona Treater Application

Di-Electric silicone sleeve manufactured from a very specific silicone rubber compound, providing excellent electrical, thermal and chemical resistance, making it ideally suited to the harsh environment that is the corona treatment process. These silicone sleeves are produced specifically as an electrical di-electric sleeve and are manufactured to extreme close tolerance, ensuring reliable and consistent corona treatment performance.

Standard Size
Roller Diameter ID Wall Thickness
2" - 50mm 48mm 3mm
2.5" - 60mm 58mm 3mm
3" - 76mm 72mm 3mm
4" - 100mm 98mm 3mm
5" - 125mm 120mm 3mm
6" - 150mm 146mm 3mm
8" 200mm 190mm 3mm
Property Unit
Hardness 60 ± 5 Shore A
Di-Electric Strength 22 KV / mm
Temperature Range -80°C to +250°C
Tensile Strength 250 % Min.
Colors Translucent, Red, Orange, Skyblue, Blue
